34mm Square Shaped Radial Leaded Metal Oxide Varistor MOV 34S201K 130VAC 170VDC 40KA 8000pF

34mm Square Shaped Radial Leaded Metal Oxide Varistors MOV 34S201K 130VAC 170VDC 40KA 8000pF

General Info

The MOV-34SxxxK Series of 34 mm radial leaded varistor devicesprotects against overvoltage transients such as lightning, powercontact and power induction. The metal oxide varistors offera choice of varistor voltages from 200 V to 1600 V and Vrmsvoltages from 130 V to 1000 V.The devices have a high current handling, high energy absorptioncapability and fast response times to protect against transientfaults up to rated limits.

Application

• Transistor, diode, IC, thyristor or triac semiconductor protection.

• Surge protection in consumer electronics.

• Surge protection in industrial electronics.

• Surge protection in electronic home appliances, gas and petroleum appliances.

• Relay and electromagnetic valve surge absorption.

Features

• Wide operating voltage (V1mA) range from 8V to 1800V.

• Fast responding to transient over-voltage.

• Large absorbing transient energy capability.

• Low clamping ratio and no following-on current.

General Characteristics

No Radioactive Material

Storage Temperature: -55ºC to +125ºC

Operating Temperature: -55ºC to +85ºC

Body: Nickel Plated

Leads: Surface-mount, Axial Devices: TinPlated

Devices with No Leads: Nickel Plated

Packaging Information

Radial Leaded Metal Oxide Varistor

Square Shaped Metal Oxide Varistor

34mm Metal Oxide Varistor

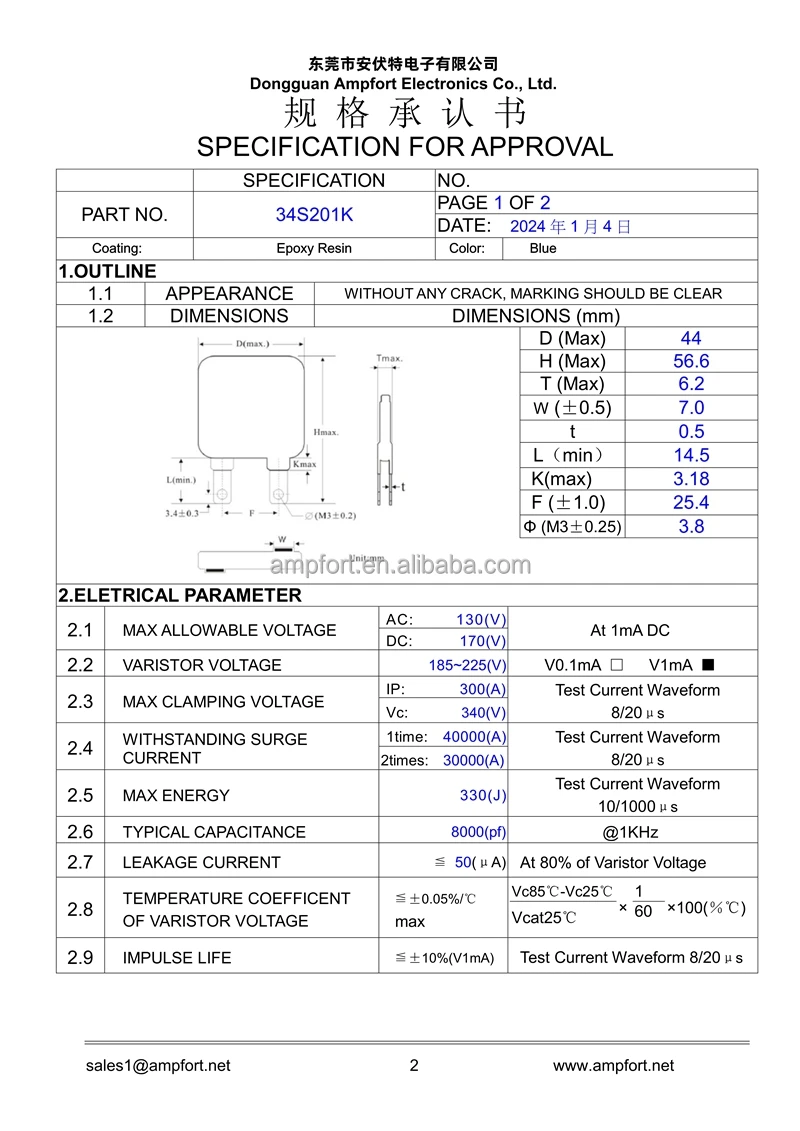

34mm Square Shaped Radial Leaded Metal Oxide Varistor MOV 34S201K 130VAC 170VDC 40KA 8000pF Images
