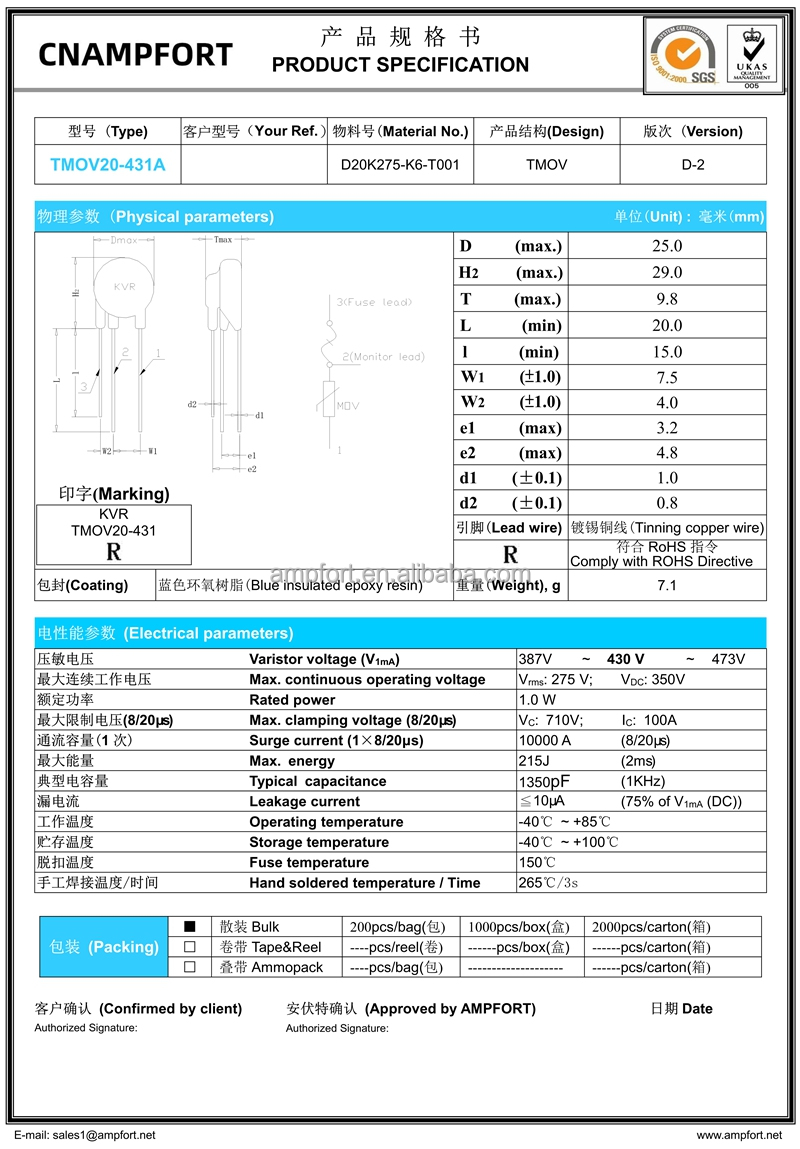

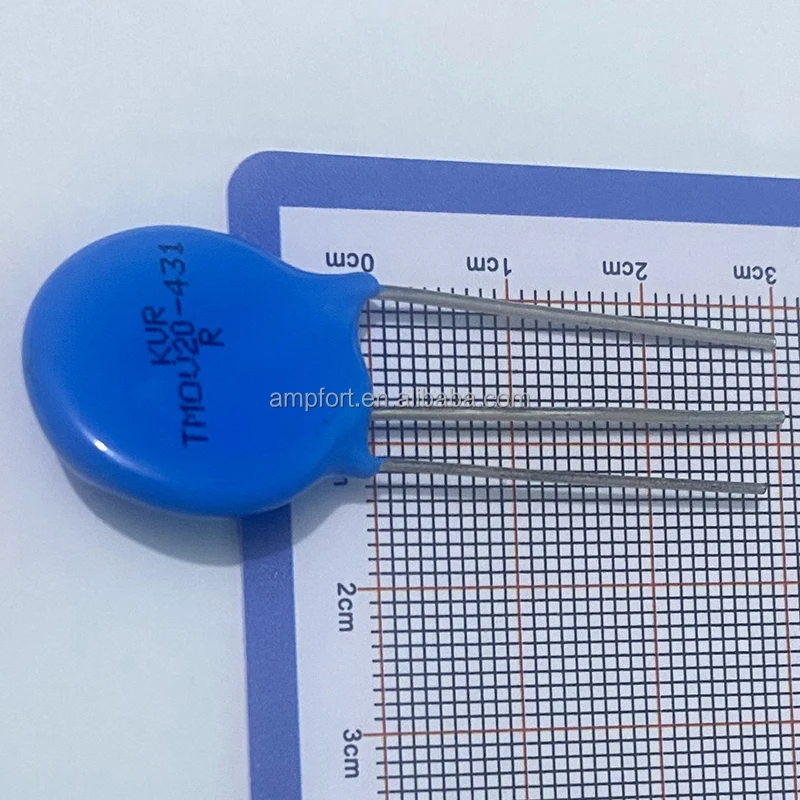

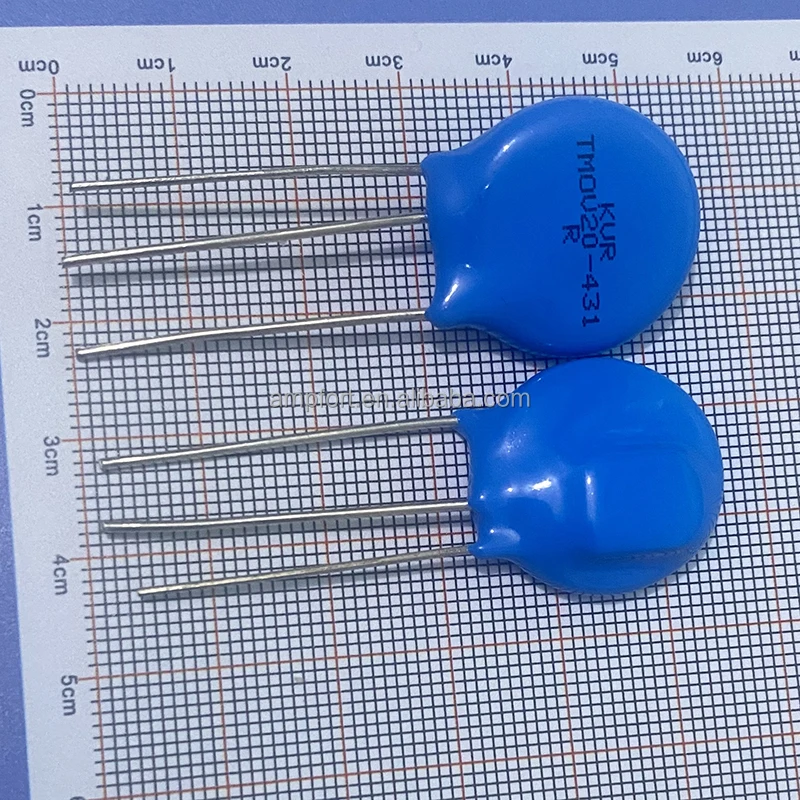

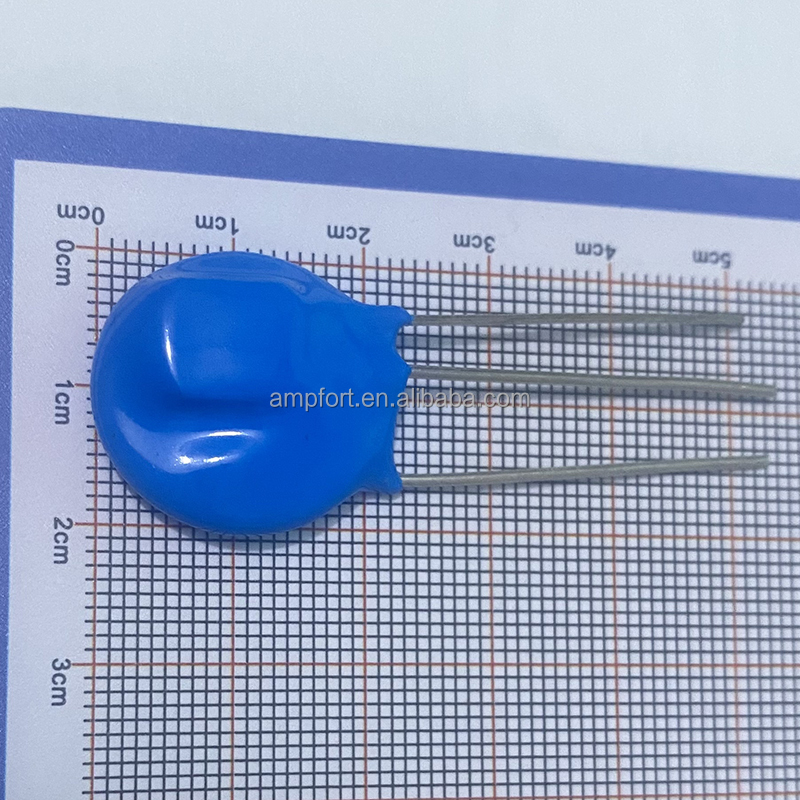

3Pin TMOV Thermally Protected Metal Oxide Varistor TMOV20-431A 20mm 430V 1W 10KA 215J 1350pF With Thermal Fuse
Ampfort thermally protected varistors represent a new development in integrated circuit protection. Both versions are comprised of radial leaded MOVs (Metal Oxide Varistors) with an integrated thermally activated element designed to open in the event of overheating due to the abnormal overvoltage, limited current, conditions outlined in international standards.
The iTMOV varistor differs from the TMOV varistor by the inclusion of a third party lead for the purpose of indicating that the MOV has been disconnected from the circuit. This lead facilitates connection to monitoring circuitry.
- The TMOV and iTOMV varistors offer quick thermal response due to the close proximity of the integrated thermal element to the MOV body.
- The integrated configuration also offers lower inductance than most discrete solutions resulting in improved clamping performance to fast over-voltage transients.
Additionally, TMOV and iTMOV varistors are wave solderable, thus simplifying end product assembly by reducing the expense and rework associated with hand soldering operations.
- The TMOV and iTMOV varisors are both recognized surge suppression components to international standards.
- The TMOV and iTMOV varistor’s integrated thermal element, in conjunction with appropriate enclosure design, helps facilitate TVSS module compliance to international standards for both cord connected and permanently connected applications.
- TMOV and iTMOV varistors are compatible for use with industry standard wave-soldering processes or recommended hand-soldering methods.
* High voltage rating
* RoHS compliant and Lead–free available
* Independent brand
* Designed to facilitate compliance to 1449 3nd Edition for SPD product
* High peak surge current rating up to 10kA
* Wave solderable
* Standard lead form and spacing option
* Low leakage -55°C to +85°C operating temp range
* Three-lead version available for indication purposes
• SPD Products
• AC Panel Protection Modules
• AC Line Power Supplies
• Surge Protected Strip Connectors
• AC Power Meters
• Relocatable AC Power Taps
• GFCI (Ground Fault CurrentInterupter)
• UPS (Uninterruptable Power Supply)
• White Goods
• Plug-in SPD
• Inverters
• AC/DC Power Supplies
Switching power supply, interpolation, UPS, telecommunications, network, railway
SPD Products
AC Panel Protection Modules
AC Line Power Supplies
Surge Protected
Strip Connectors
AC Power Meters
Relocatable AC Power Taps
GFCI (Ground Fault Current Interupter)
UPS (Uninterruptable Power Supply)
White Goods
Plug-in SPD
Inverters
AC/DC Power Supplies
